Sale!
SKU SAILMON - Max & Ultrasonic Portable Categories ,

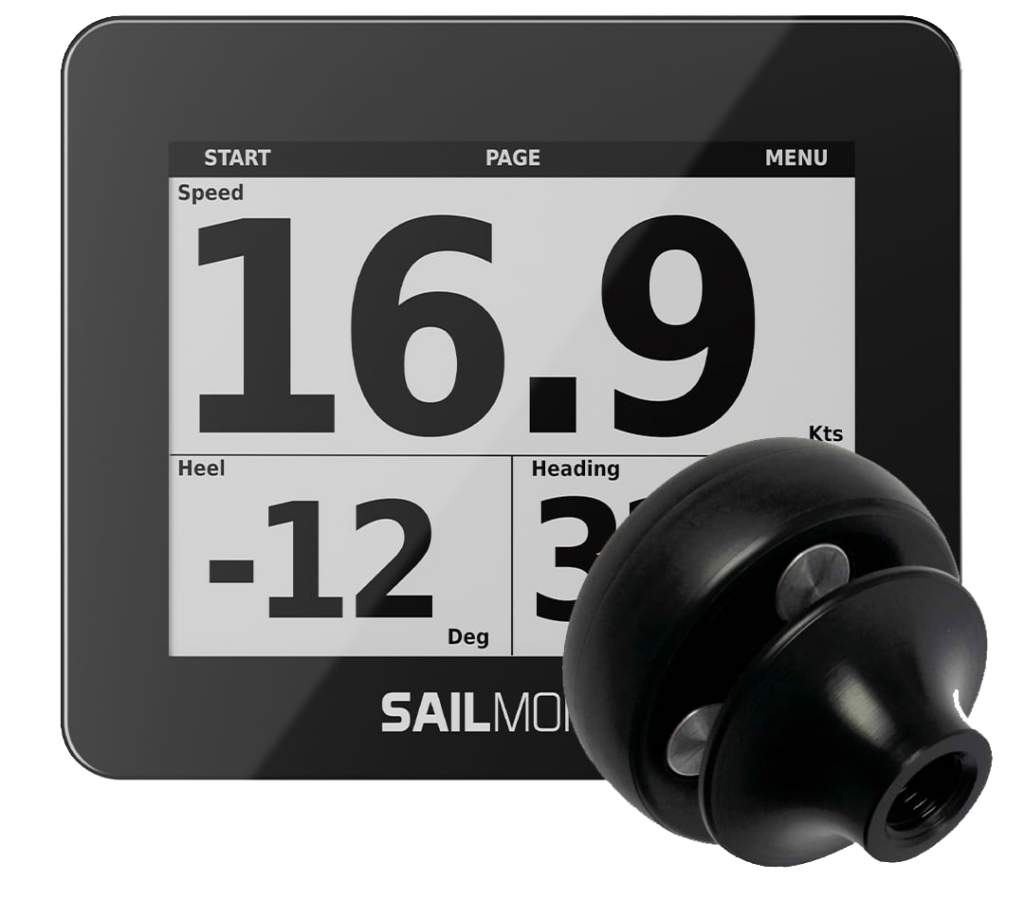

MAX + ULTRASONIC PORTABLE WIND SENSOR

By connecting the BLE wind sensor, you can get instant apparent & true wind readings. Buy this package and save €50

Availability: in stock

SKU SAILMON - Max & Ultrasonic Portable Categories ,

1,344.00 inc VAT

  • MAX + bluetooth, solar-powered and IPX8 pocket-sized ULTRASONIC anemometer
  • Inductive charging pad for MAX
  • Mounting bracket for MAX
  • Protective cover for MAX
  • Quick Start Guide

MANUALS

MAX
Sailmon App

TECHNICAL SPECIFICATIONS

Size
Height: 93mm
Width: 118,5mm
Depth: 22mm
Weight: 275gr

Buttons and Connectors
1) Soft keys for calibration and line ping
2) Inductive charging pad
3) Soft keys for menu navigation, & start controls

Display
320 x 240 pixels 4,4” transflective LCD
Anti reflection frontglass, for maximum viewability

Power & Battery
3600mAh lithium-polymer battery for
All day battery use
Wireless waterproof charging

Sensors
25hz multi GNSS constellation GPS (GPS, GLONASS, Galileo, BeiDou)
9 DOF IMU for heading heel & pitch

Wind Speed
Range: 0 – 25 m/s
Resolution: ±0.1 m/s at 10m/s

Wind direction
Range: 0 – 360º
Resolution: ±1º

Sensors
Ultrasonic transducers (4x)
Sample rate: 1, 4, 8 Hz

Secondary sensors: Thermometer, Gyroscope, Accelerometer
(Accuracy may vary depending upon the App used, its release and the firmware version)

Power
Solar panel, internal battery, automatic power management.
Autonomy with no sunlight: in sleep mode up to 1 year, while measuring up to ~30 days.

Bluetooth
Version: 4.0 or beyond
Range: Up to 50 m (free space)

Firmware
Upgradable (Learn more)
Current version: 0.76

IP Code
IPX8 protection grade (10 meters).

Dimensions
Diameter: 70 mm
Height: 57 mm

Weight
135 grams
Easy mount
16 mm (M16x2) female thread

MAX (and the Sailmon App) is all you need to become a better sailor. See which features/data you can use to go faster, sail higher & improve your sailing skills.

Data before (start function with)
– Time to Start
– (Estimated) Distance to Line
– Distance to Start
– Line Bearing
– Distance to line
– Simple Start Page
– Race Timer

Data during (use Page Builder to set up your pages)
– Boat Speed Water
– Compass
– Course Angle
– Course over Ground
– Depth (add-on required)
– Header/Lift
– Heel
– Loadcells (add-on required)
– Pitch
– Speed over Ground
– Time
– True Wind Angle (add-on required)
– True Wind Direction (add-on required)
– True Wind Speed (add-on required)
– Velocity Made Good
– Velocity at Start

Data after:
– MAX speed
– Ten Second Average
– Top 10 Second Average

Data via Sailmon App
– Automatically logging trips
– Share, like and comment
– Session reports
– Personal highlights
– Daily results ranking
– View by leg
– Leaderboards
– Photo/video with data stamp

Additional features via Sailmon GOLD subscription (click here for more information)
– Download trip (GPX, CSV or Events)
– Compare (live) with others
– Up- and downwind performance
– Personal inferred wind directions
– Shift tracking
– Automatic comparison to best polars in class

And:
– Non-GPS mode
– NMEA input (depth, wind and speed)
– Repeater mode (same data lay-out on different MAX units)
– Free over-the-air software updates
– E4 connection
– Windgraph
– Loadcell integration (Sailmon Gold subscription)
